Loading Bays Product Range

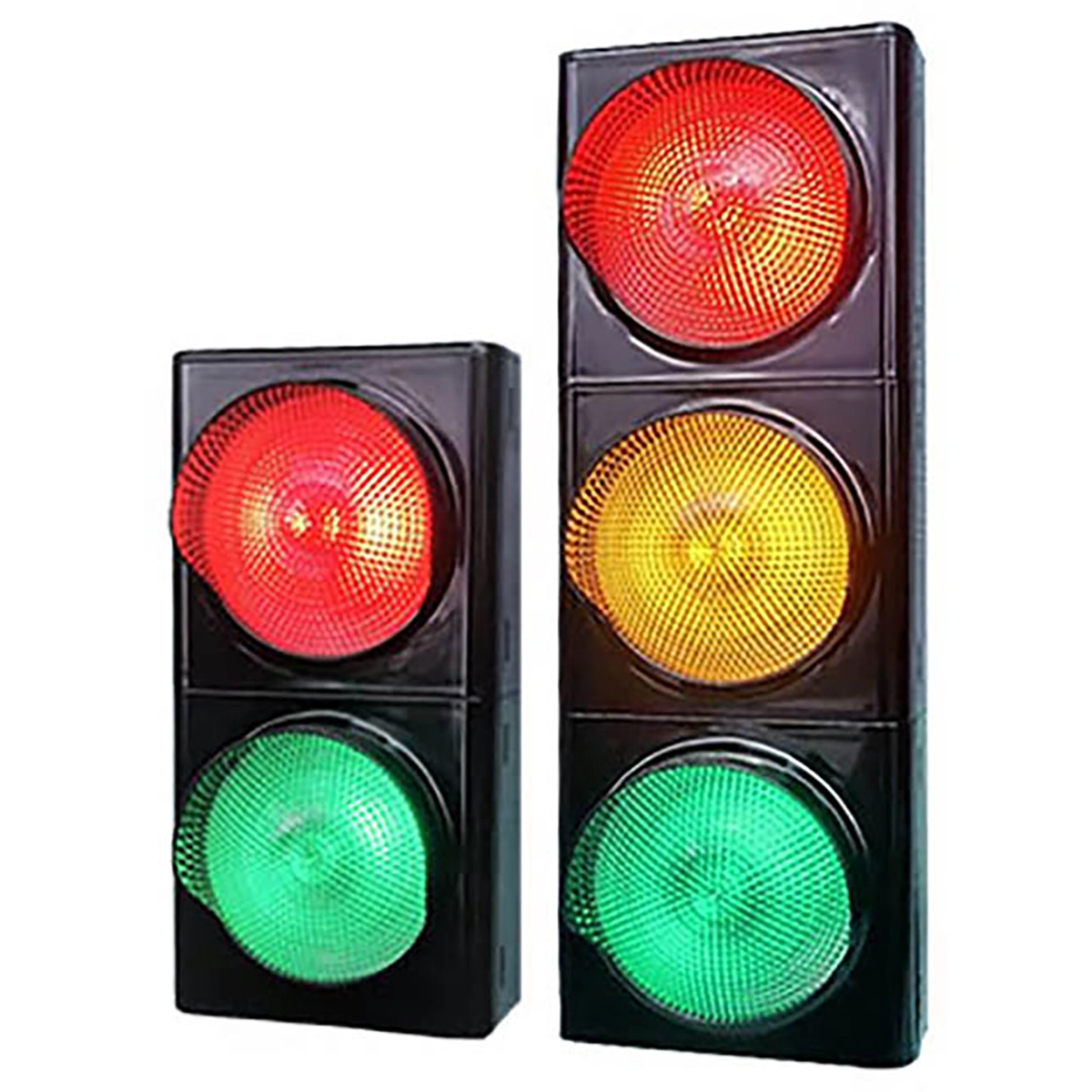

LED Traffic Lights & Signals

We have a Traffic Lights for most applications, whether it is for internal of external use, a Loading Bay, Car Park, or Weighbridge, but to name just a few, we cover them all.

Features:

• Power Consumption - 6 Watts Max
• Quick Pay Back
• Multi Voltage - 12v DC, 24v DC, 230v AC, (dependant on model)
• Twin Aspect - 250mm high
• Triple Aspect with Amber available on D4 model only - 375mm High
• IP Rating: 65

LED Dock Lights

4 Year LED Warranty

Having sufficient light in the rear of your trailers can be a significant Health and Safety issue. Our heavy duty specification makes our light one of the few on the market capable of withstanding the rigors of a busy loading bay.

Features include:

• Safety Low Voltage, Via Built in Transformer
• Powerful LED Beam up to 1000 LMS
• Robust Lamp Head
• Cool Touch LED, for Precise Positioning
• Flexible Gooseneck or Anglepoise
• Model DLAP-LED 18w LED or Model DLFL-LED 1000LMS

Dock Bumpers

Our loading bay dock bumpers are produced from high quality Natural / SBR rubber compounds, which makes them some of the toughest bumpers around. If that's not tough enough, we can supply you with a number of protection faces which include Nylon, Steel, Polyethylene or sections of Aircraft Tyres.

Options available:

• Combi - Yellow Faced - Sliding
• Steel Face Plates
• Combi - Yellow Faced - Fixed
• Rubber with Rayon Reinforcement
• Laminated
• Spring Loaded
• Rubber

Bumper Riser Plates

Standard plates raise your bumpers by either 150mm or 250mm above dock, but can be produced in heights to suit your site requirements.

Features include:

• Produced from 12 mm Thick Steel Plate
• Gusseted for Extra Strength
• Heights to Suit Your Application
• Tapped Rear Plate for Easy Stud Replacement

Wheel Guides

Wheel Guides situated in front of the loading bay, improve safety and ensure centralisation onto the dock door. This can extend the lifespan of your dock shelters quite considerably.

Options:

• Galvanised (3m only)
• Galvanised, then Yellow Powder Coated (2m only)
• Bolt Down
• Reduced Height 210mm Model for Double Deckers

HGV Parking Control

Traffic control extrusions are ideal for parking applications to stop vehicle overrun when parking up.

Options:

• Rubber and Steel Formats

Wheel Chocks

We have a comprehensive range of rubber products. There are so many different types for different applications we can't show you all of them here. If you are looking for a particular size or type, contact us so we can establish a product to cover your needs.

Products available include:

• Wheel Chocks For: Aircraft, HGV's, Cars and Trailers
• Wall Protection Extrusions

Dock Shelters & Seals

We offer a full range of Loading Bay door protection, from complete units to replacement curtains.

Our materials are of the highest quality and are renowned for their durability and resistance to wear. Rear backing options on our seals are either treated timber or galvanised steel. Please contact us for more information.

The most popular are:

• Retractable Frame Shelters
• Dock Seals

Litter Bags & Warehouse Recycling

Suitable for most warehouse racking systems our sack simply hooks to the end of your racking frame, specifically developed so that it will not intrude into your valuable warehouse space.

Features include:

• 920mm wide x 1000mm high
• Hook On / Off
• Large Open Mouth
• Tough Waterproof Polyester
• Strong Handles on Sides and Bottom
• 10 x Pre-printed Designs

Cable Protectors & Hose Ramps

If you know of Linebacker, then you will already know about our products. Designed to protect cables or hoses, in a multitude of applications. Produced from the highest quality PE/SBR/NAT Rubber, and yet with a price tag that makes them the most competitive on the market.

Features include:

• Heavy Duty to Withstand 6000kg Single Axle Weight
• Supplied in 1m Lengths
• Hinged Lid For Easy Cable Laying
• 3 or 5 Channels
• Designed for HGV use
• Quick Install

Trailer Plates

With the constant movement of trailer support legs rubbing to and fro on your parking area, this can lead to serious deterioration to the concrete. Now with our specially formulated Nylon sheeting you can simply cover over the offending area. Our yellow safety coloured Nylon is at the forefront of many of our product designs because of its inherent strength and versatility.

Features include:

• Extremely Hard Wearing
• Will not Rust or Corrode
• Standard sizes 1000mm x 1000mm x 16mm or 1000mm x 2000mm x 16mm
• Recessed or Surface Mount
• Special Sizes Available

Welding Screens

Our free standing welding screens are produced to high standards like all of our products. They have a robust steel construction finished in safety yellow powder coating. Being modular in design means they can be easily extended from the standard 2m square unit. .

Features include:

• Link Together to Extend Width
• Static or on Wheels
• 300mm x 2mm Welding Grade PVC
• Welding Colours Green or Bronze to comply with HSE / EU Directives
• Clear and Red PVC available
• Stainless Steel Head Gear

Sectional Doors & Components

We purchase direct from the UK's largest trade manufacturer of sectional doors. This gives you access to not only complete doors, but also their vast stocks of sectional door components.

If you are looking to repair your door, and need parts or panels from some of the big names in the business, we can help with that too, but at a fraction of the price.

Strip Curtains

Our PVC strip is produced from only the best quality plasticised and stabilised PVC resins, to give a smooth surface and rounded edges for a constant thickness and width.

Available in:

• Clear
• Orange
• Green

Materials are available to suit either ambient conditions, or for freezer application where they are designed to cope with temperatures down to -30 c. PVC can be purchased in rolls, cut to length and punched, or alternatively as a complete door with hardware.

Bollards

Bollards are available in an industrial format of up to 1200 mm high x 168 mm dia., shown here in yellow powder coat over hot dip galvanise. Alternatively we can supply them in an architectural format for car parks and walkways, or flexible.

Options:

• Galvanised
• Galvanised and Yellow Powder Coated
• Bolt Down
• Cast In
• Flexible
